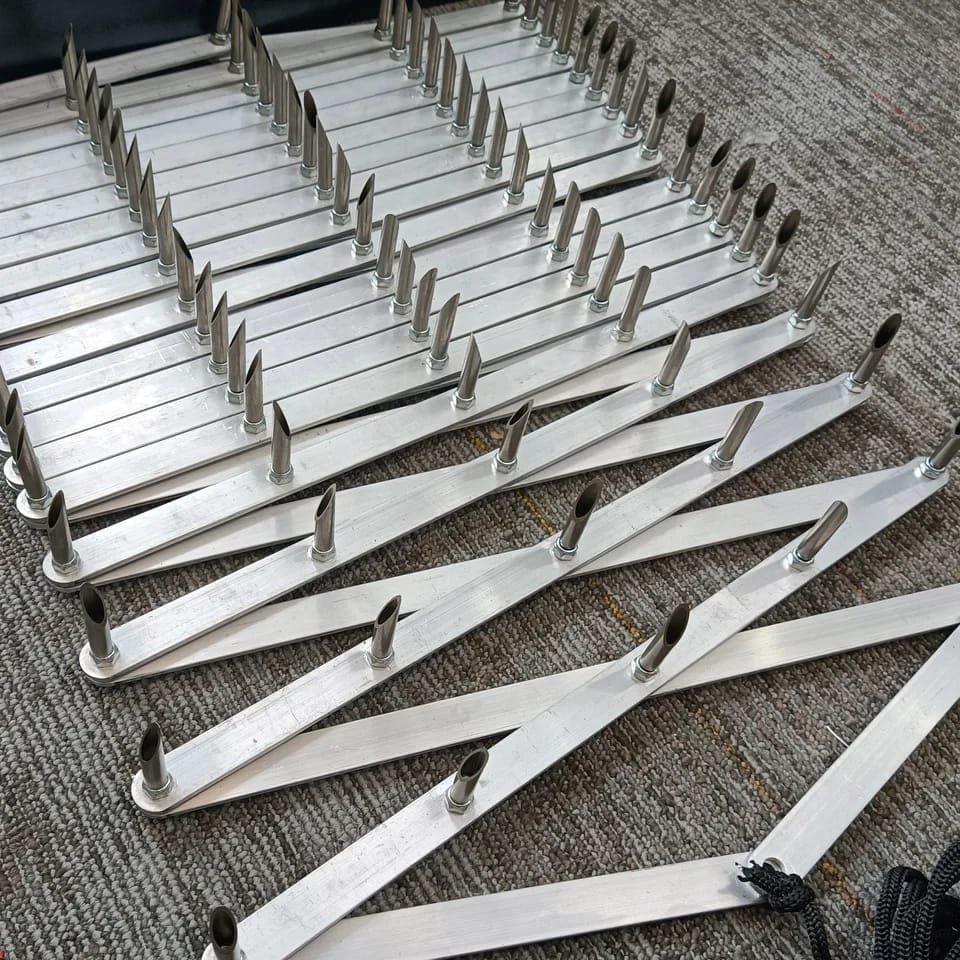

Manual portable Tyre KillerAnti-Terrorist MS/ Stainless Steel Tyre KillerSafewaySystem- POT_972Cross 15inch Open 12 inch Without Box

Auto Manual And Hydraullic

Anti-Terrorist Stainless Steel Tyre Killer

SafewaySystem- ECE972

hydraulic road blocker/barricade series

dely used in highway tool station, checkpoints,

prisons, airports, government agencies,

embassies, military base-station, custom

ports, banks, industrial and mining companies,

ports, warehouse, parking

and all requests to control vehicle in and out restrict traffic places. Operator is issues a command by the control system, and the

motor drive makes the stop device of the vehicle drop rapidly.

After the vehicle is

passed, the vehicle can be rapidly increased

by the operator’s remote control or manual button operation, in order to control the door of the driveway to release or seal, effectively prevent the vehicle from forcing the card.

The equipment is mainly composed of three parts, which are mainframe, motor control box, electric control.

1. Mainframe:

Retractor mainly by the flip body, frame

composition (anti-collision teeth can be adjusted according to customer needs height). Machine is the steel structure, and it is made of GB A3 steel blade, with high strength load-bearing and crash resistance; body without electricity, no line set, waterproof, safe. The device is buried in the lane or the designated location of the door, to

limit the vehicle traffic.

2. Electrical integration remote control device

box:

The control box is mainly composed of the motor, the reducer, the gear transmission group, the connecting device, the limit switch and so on. It is the power source of the whole choke system. The device is installed on the side of the choke, Can be changed by electronic control rising and lowering speed), power failure can be manually put anti- collision tooth nails, can also be manually raised.

3. Electrical control system:

Automatic electronic control part: control board, sub-control board, leakage switch, no contact noise high life contactor, precision start time setting (anti-motor stroke in place after the impact force, increase the life of motor), can be set automatically (From the ground to the coil).

Automatic controller: including control box, remote control, manual button, etc. by the person on duty controlling

Main technical parameters

Control system: electric

Power:220V

System power: 500W to 5000W

Weight capacity: 25kg to 100kg

Opening time:1~3s (can be adjustable)

Closing time:1~3s(can be adjustable)

Remote control distance: >100m

Blade height: 125±5mm

Operating temperature:-35°C-75°C.

Storage temperature:-40°C-75°C,waterproof, dust-proof,

Body size: the width of interceptors 3000-

16000mm (customized according to

customer requirements), the height of

clamshell 128 ± 5mm,the height and length of

the size can be customized according to

customer needs.
